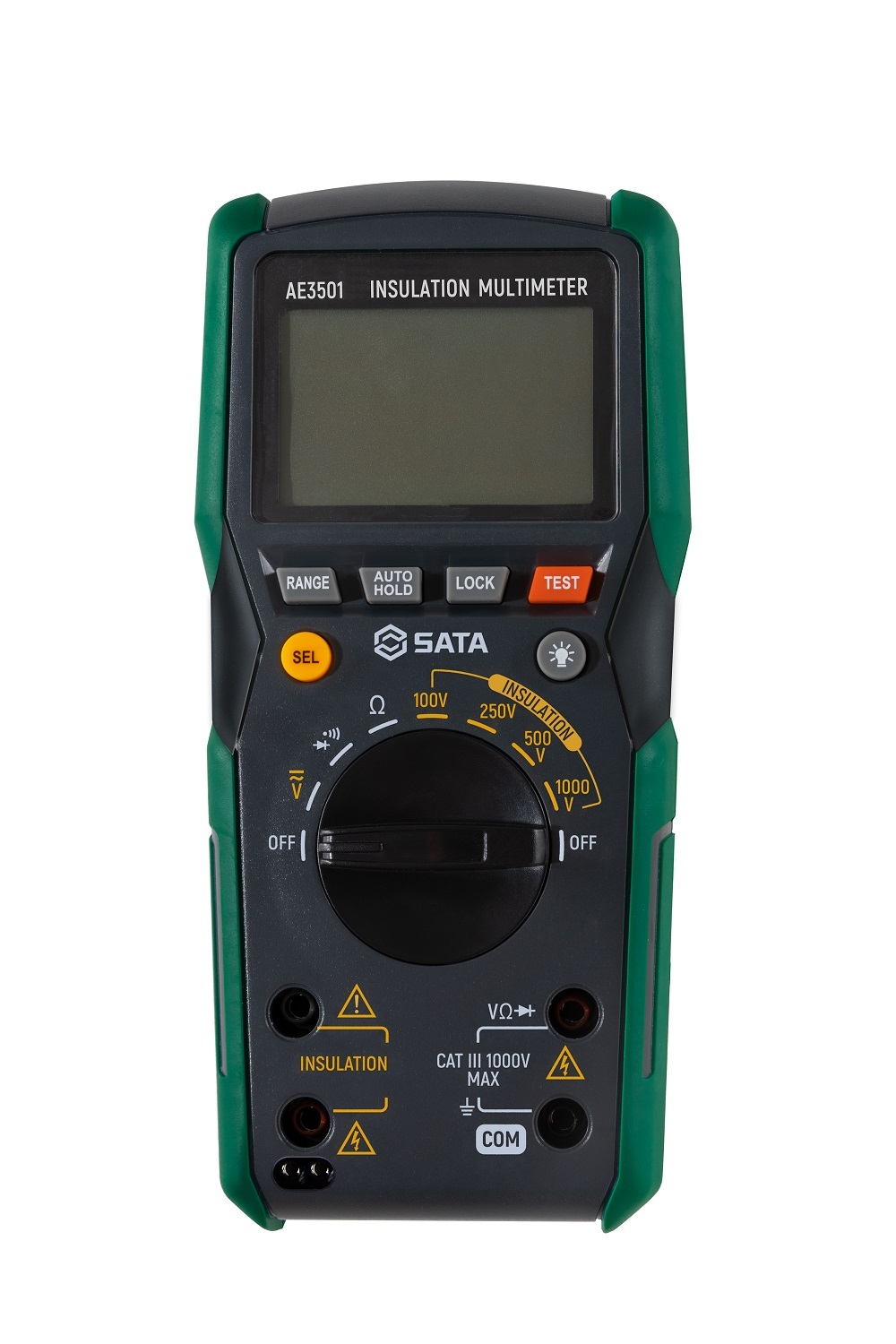

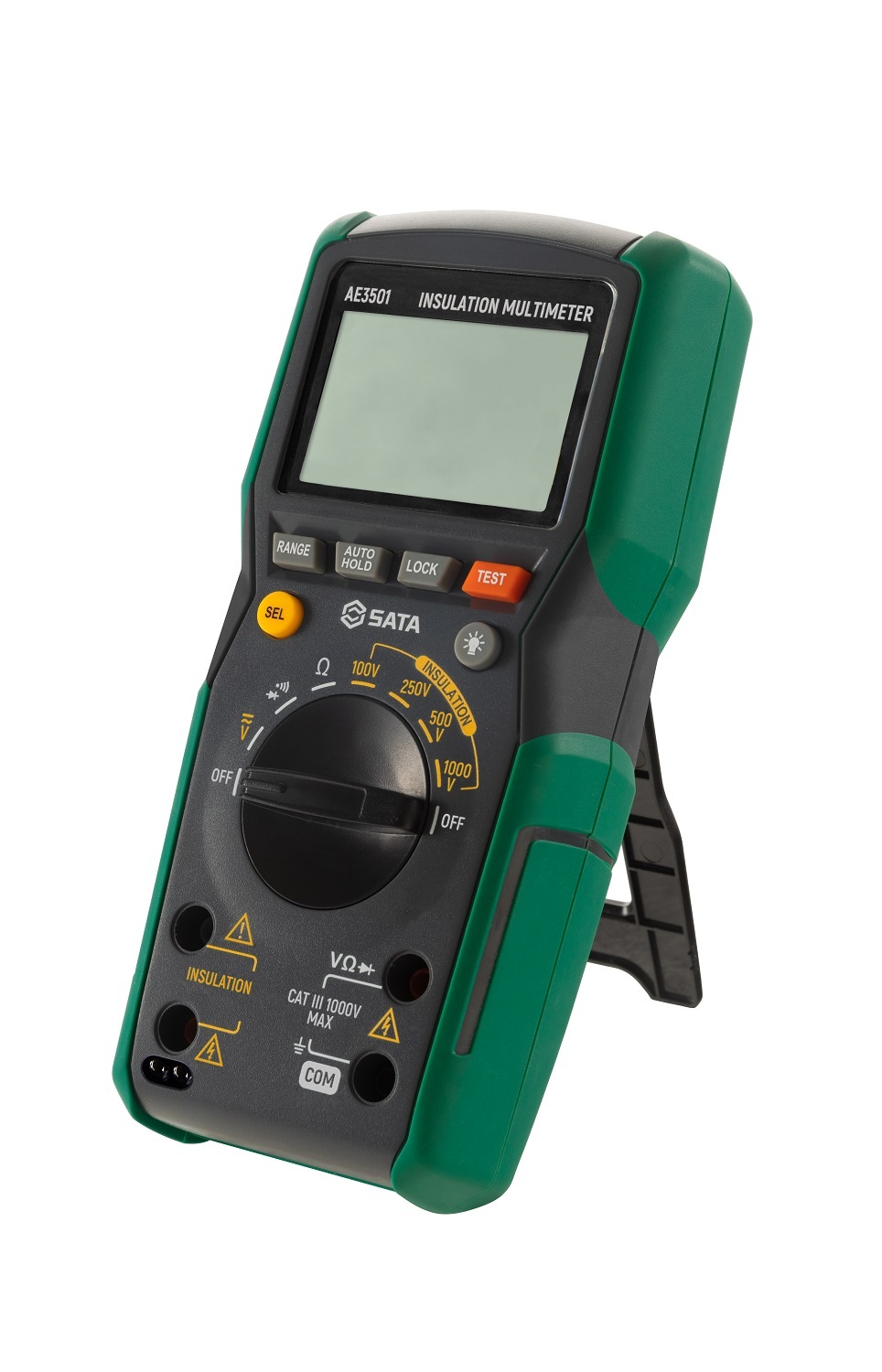

AE3501 SATA Hand-Held Insulation Resistance Tester
No.AE3501
SKU: SCAE3501
Introduction
| Integrated 4 test voltage levels, 100V/250V/500V/1000V |
| Humanized design, the meter pen remote control line allows one person to operate |
| 4000-word reading display with analog bar display |
| Automatic voltage release function improves the user's operating safety |
(0 Reviews)
| Product No | AE3501 |
| Power Supply | 6*1.5VAAA |
| Data retention | √ |
| Security level | CATIII 1000V CATIV600V |
| AC Voltage | 400mV/4V/40V/400V/1000V |
| DC Voltage | 400mV/4V/40V/400V/1000V |
| Backlighting | √ |
| Warranty Terms | Two-year product warranty, except for accessories (meter pens, batteries, etc.) |
| On-off test | √ |
| insulation resistance measurements | 0.1MΩ-2GΩ |
| 100V | 0.1MΩ~20.00MΩ (resolution 0.01MΩ) 20.0MΩ~100.0MΩ (resolution 0.1MΩ) |
| 250V | 0.1MΩ~20.00MΩ (resolution 0.01MΩ) 20.0MΩ~200.0MΩ (resolution 0.1MΩ) |
| 500V | 0.1MΩ~20.00MΩ (resolution 0.01MΩ) 20.0MΩ~200.0MΩ (resolution 0.1MΩ) 200MΩ~500MΩ (resolution 1MΩ) |
| 1000V | 0.1MΩ~20.00MΩ (resolution 0.01MΩ) 20.0MΩ~200.0MΩ (resolution 0.1MΩ) 200MΩ~2000MΩ (resolution 1MΩ) |
| Resistance measurements | 400Ω-40MΩ |
| Diode | √ |
| Manual/automatic range | Switchable (insulation resistance test without manual range) |
| Over-range indication | √ |
| Automatic shutdown | √ |
